PDT1371H Prober-Dedicated Manipulator
The innovative design of the Reid-Ashman PDT1371H Prober-Dedicated manipulator affords the operator ease of use while occupying a minimal test cell footprint.
PDT1371H manipulators are specifically designed to provide convenient and efficient docking between the Nextest SV Magnum Dual test heads and a variety of probers.
Some of the features and benefits of the PDT1371H manipulator are:
- Easy initial set-up
- Repeatable docking
- Designed for use with a variety of probers
- Vertical
- Side-to-Side
- Twist
- In-Out*
- Tumble*
- Theta*
Weight Capacity:
PDT1371H 450 lbs - 750 lbs (204 kg - 340 kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

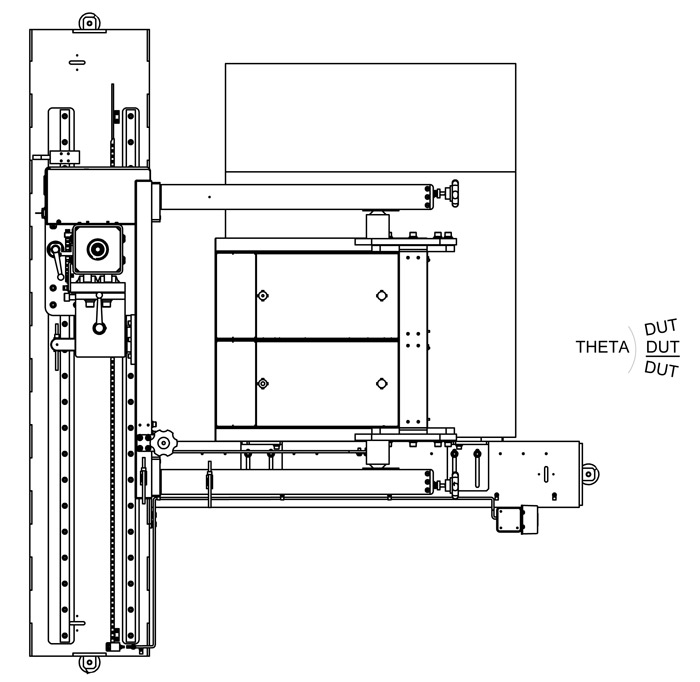

Footprint:
