OM1340 Universal Manipulator
The innovative design of the Reid-Ashman OM1340 Universal manipulator provides a high level of performance while requiring minimal effort from the operator.
OM1340 manipulators are specifically designed to provide convenient and efficient docking between the Advantest T2000GS test system and a variety of handlers and probers.
Some of the features and benefits of the OM1340 manipulator are:- Small footprint
- Easy initial set-up
- Repeatable docking
- Designed for use with a variety of handlers and probers
- Patented vertical direct-drive system†
- Vertical*
- Twist
- In-Out
- Side-to-Side
- Tumble
- Swing
- Theta
Weight Capacity:
OM1340 300 lbs - 450 lbs (136 kg - 204 kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

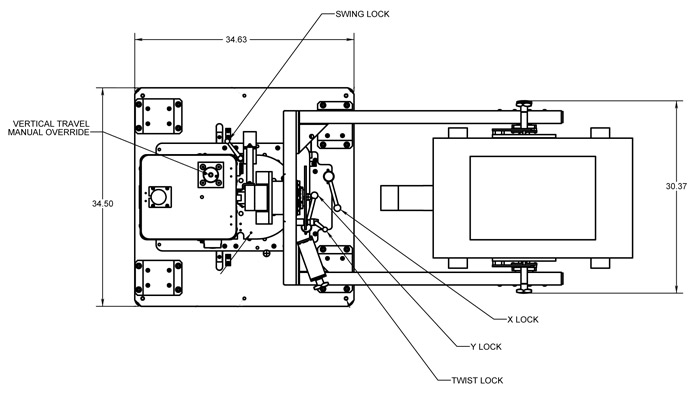

Footprint:
