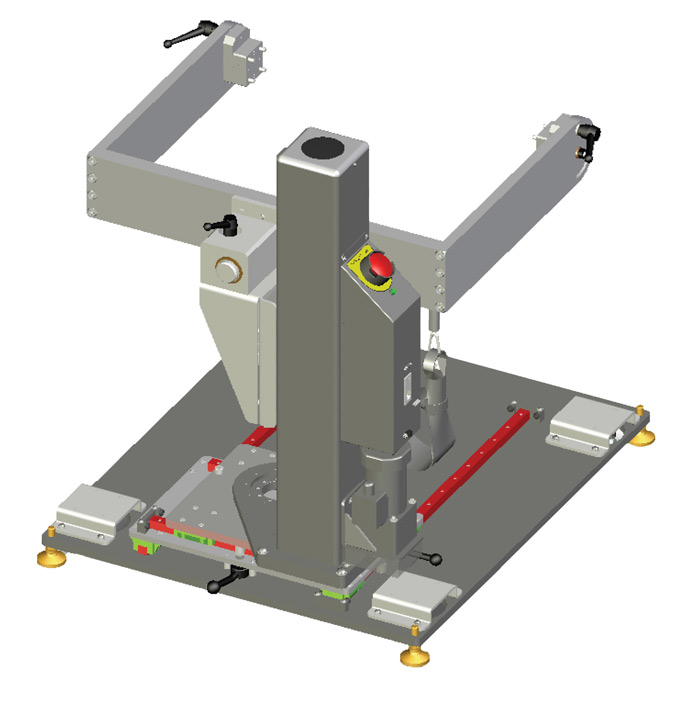

HM1335 Handler-Dedicated Manipulator
The space-saving design of the Reid-Ashman HM1335 Handler-Dedicated manipulator affords the operator ease of use while occupying a minimal test cell footprint.
HM1335 manipulators are specifically designed to provide convenient and efficient docking between the Eagle ETS364 & ETS600 test heads and a variety of handlers.
Some of the features and benefits of the HM1335 manipulator are:
- Easy initial set-up
- Repeatable docking
- Designed for use with a variety of handlers
- Patented vertical direct-drive system†
- Vertical*
- Side-to-Side
- Twist
- In-Out
- Tumble
- Theta
Weight Capacity:
HM1335 300 lbs - 450 lbs (135 kg - 205 kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.
Footprint:
