HM1300 Series Handler-Dedicated Manipulator

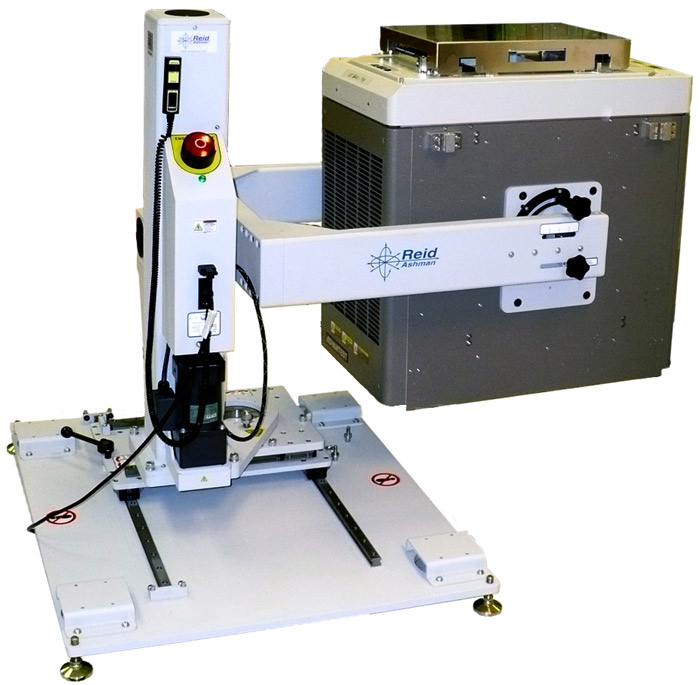

The space-saving design of the Reid-Ashman HM1300 Series Handler-Dedicated manipulators affords the operator ease of use while occupying a minimal test cell footprint.

Some of the features and benefits of the HM1300 Series manipulators are:
  • Easy initial set-up
  • Repeatable docking
  • Designed for use with a variety of handlers
  • Patented vertical direct-drive system†
Standard Motions:
  • Vertical*
  • Side-to-Side
  • Twist
  • In-Out
  • Tumble
  • Theta
*Motorized motions

Weight Capacity:
HM1300 300 lbs - 450 lbs (135 kg - 205 kg)

Test heads in this weight range include:
Advantest T2000GS; Credence SZ3650 & D-40; Chroma 3600; Eagle ETS364; LTX LX; Texas Instruments VLCT

†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

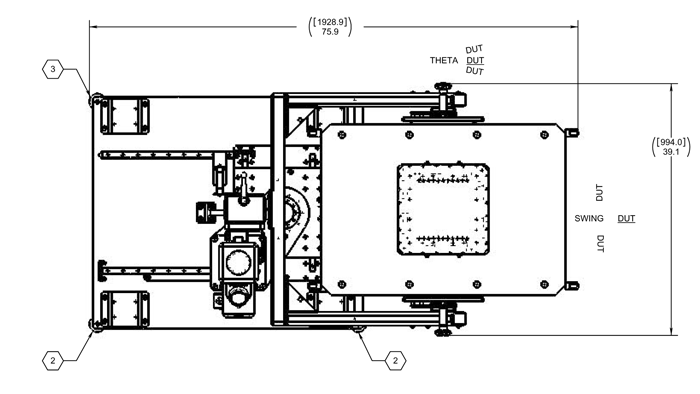

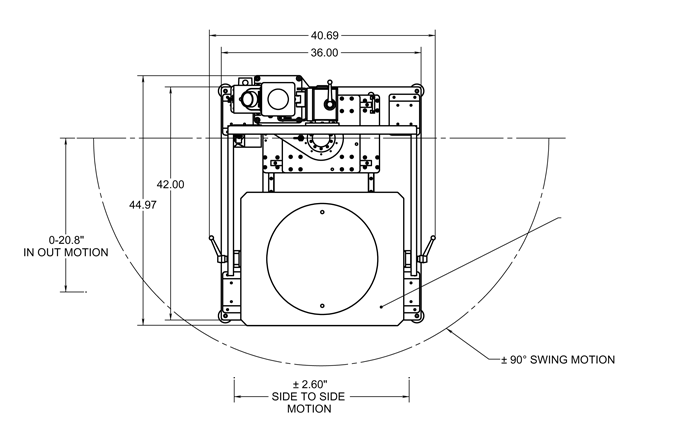

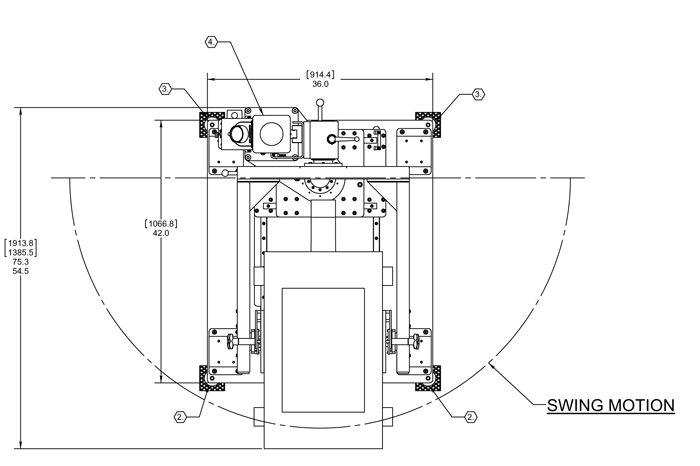

Footprints:
